Few things slow a shell line down faster than defects that seem small at first and then keep returning shift after shift. That is why Luggage Making needs a clear way to read defects as process signals instead of random failures. In hard-shell production, one issue in heating, vacuum response, cooling, or sheet behavior can quickly turn into scrap, rework, delayed trimming, and unstable shell quality across the whole line. RBT MACHINERY’s forming range is built around this production reality, with heating, molding, control, vacuum, and cooling systems designed to keep luggage shell forming more stable from cycle to cycle.
Webbing appears when extra material folds, bridges, or bunches in areas where the sheet should have flowed smoothly into the mold. On luggage shells, it often shows up between nearby features, around deep contours, or in transitions where the shell shape changes quickly. The defect is especially troublesome on larger or more sculpted shells because the extra material becomes highly visible and can interfere with later trimming and assembly. Industry defect guides describe webbing as unwanted wrinkling or material bunching during vacuum forming, often where excess material is trapped or where the flow path is not smooth.
Webbing is usually tied to material distribution. If the sheet is overheated, certain zones become too soft and collapse into folds before they are properly drawn into shape. If the geometry is too tight, cavity spacing is too narrow, or corners are too sharp, the material may not have a clean path to stretch. Troubleshooting sources also point to insufficient spacing, uneven heating, poor vacuum-hole placement, and rapid vacuum application as common triggers. The most practical corrections are to rebalance heat, improve spacing and corner radii where possible, slow down or stage the forming action, and use a more controlled vacuum response. On a luggage line, this is exactly where stable heating zones and sufficient vacuum capacity in the forming machine begin to matter.
Uneven wall thickness is one of the most important luggage-shell defects because it affects both structure and appearance. Thin spots reduce confidence in shell durability, while over-stretched zones can look visually weak, especially on smooth hard-shell products where surface consistency matters. Wylong’s thermoforming defect guide defines thinning as overstretching that causes inconsistent wall thickness, and notes that it reduces durability and increases defect rates. On luggage shells, the commercial impact is even higher because the part is both functional and highly visible.
This defect usually improves when heating and draw are controlled more deliberately. Uneven heating makes hotter zones stretch too easily while cooler zones resist flow, and poor material distribution makes deep or sharp areas pull too much of the sheet at once. Troubleshooting sources repeatedly point to zone-control heating, better pre-stretching, plug assist on deeper draws, and mold design changes such as smoother radii and better depth transitions. A useful operator mindset is to look for the first area that starts to thin, then work backward through heat distribution, draw ratio, and part geometry instead of only raising sheet thickness.
Defect | What it looks like | Likely cause | Quick fix | Long-term prevention |
Webbing | Folds or bridges between features | Overheating, tight spacing, uneven flow | Rebalance heat and reduce aggressive draw | Improve mold layout and staged forming |
Uneven wall thickness | Thin spots and overstretched areas | Uneven heating, deep draw, poor distribution | Adjust heat zones and support pre-stretch | Use better material distribution and plug assist |
Blisters or bubbles | Raised pockets on the surface | Moisture, trapped air, sheet overlap | Dry sheet and check venting | Control storage, vent design, and alignment |
Warping after cooling | Part twists after demolding | Uneven cooling and internal stress | Extend cooling and support the part | Standardize cooling rhythm and tooling behavior |
Poor detail or incomplete forming | Soft corners and weak definition | Underheating, slow vacuum, dirty mold | Raise heat or check vacuum flow | Maintain stable heat, vents, and mold condition |
Blisters and surface bubbles are among the easiest defects to see and one of the fastest ways to lose a good-looking shell. They appear as raised pockets or bumps, often near thicker areas or edges, and they immediately make the part look unfit for a premium luggage product. High moisture levels are a major cause of bubbling and blistering, especially for hygroscopic materials such as polycarbonate. Absorbed moisture in PC and ABS can vaporize during heating and create internal bubbles. For luggage shells made from PC, ABS, or PC/ABS, this makes material condition just as important as machine condition.
The first checks should be practical. Confirm whether the sheet was dried properly, whether storage conditions were stable, and whether the defect appears in the same place or randomly. Then inspect venting, clamping, and sheet alignment. Trapped air from inadequate venting and overlapping material during forming are also common causes of bubbles. On the machine side, RBT MACHINERY’s forming product pages emphasize sufficient vacuum capacity, staged vacuum functions, and flow-rate control, which are directly relevant when the line is trying to pull the sheet tightly and evenly against the mold without trapping air.
Warping is frustrating because the shell may look acceptable when it first leaves the mold and only distort later. That usually means the problem is not simply the forming moment itself, but the stress left inside the part as it cools. Troubleshooting sources describe warping as a result of uneven cooling and differential shrinkage, where one section of the part cools or contracts faster than another. A part can cool more on one side while still on the mold, creating internal stress that only becomes visible as the part reaches ambient temperature.
Cooling should be treated as part of forming quality, not as a separate afterthought. Better stability often comes from extending cooling time, improving support while the shell settles, and keeping the cooling rhythm more consistent. RBT MACHINERY’s forming pages describe four high-efficiency centrifugal fans on the left and right stations that accelerate cooling and shaping, and the product pages also highlight effective cooling as essential to setting the shell quickly and accurately. The tooling side matters too: RBT’s aluminum mold page notes that good thermal conductivity supports more uniform heating and helps minimize uneven thickness, bubbles, and warping.
Poor detail and incomplete forming show up as soft corners, weak definition, rounded features that should be sharp, or surfaces that fail to fully copy the mold. On luggage shells, this often becomes obvious around logo zones, contour transitions, wheel-seat areas, or edge details that need to look crisp before CNC trimming. Low plastic temperature is the most common reason for poor detail, while other troubleshooting guides also point to insufficient heating or low forming pressure when the sheet fails to flow fully into the mold.
This defect usually means several systems should be checked together rather than one setting in isolation. If the sheet is too cold, it will not draw tightly enough. If the vacuum is weak, slow, or leaking, the sheet will not fully contact the mold. If the mold surface is dirty or the venting is poor, fine detail may still fail even when heat looks acceptable. It is recommended to check for leaks, vacuum-hole quantity, and hole size when the final part lacks detail, and RBT’s forming range shows why machine structure matters here: it includes vacuum boxes, primary and secondary vacuum stages, and gate-valve control for flow response.
The fastest defect fix is not always the most valuable fix. What matters more is whether the same issue returns next shift. That is why a good luggage thermoforming routine should start with repeatable inputs: stable sheet thickness, proper drying, known heating recipes, controlled vacuum timing, clean molds, and consistent cooling. RBT MACHINERY’s own luggage manufacturing overview presents vacuum forming as a stage that controls heating, molding, and cooling together, and then hands the shell into CNC cutting for precise finishing. That sequence is important because it shows why defect control has to begin before trimming, not after scrap appears.
A better routine also means using defect location as a clue. If the same corner keeps thinning, look at heat distribution and draw ratio there. If detail is weak in one local area, inspect vacuum response, vents, and mold cleanliness. If blisters appear randomly, check material condition first. The more repeatable the checks become, the less time the team spends reacting blindly. Defect control is rarely about one dramatic change. It is usually about building a process that makes the same good shell over and over again.

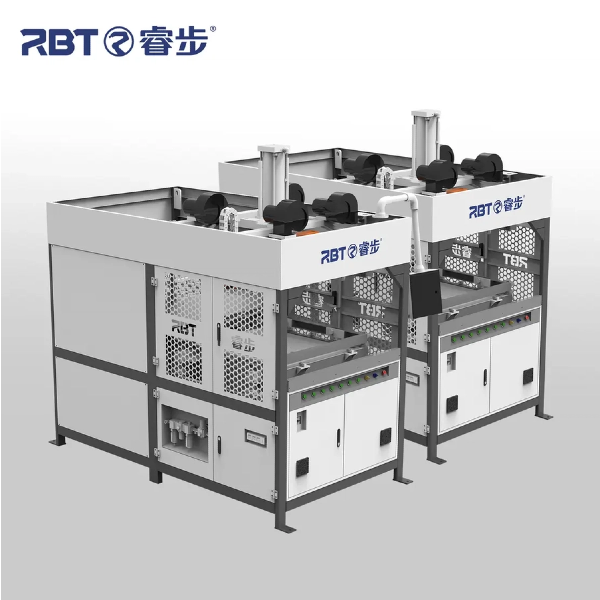

For teams focused on Luggage Making, the quickest way to improve shell quality is to stop treating defects as isolated accidents and start reading them as clear process signals. Webbing, thinning, bubbles, warping, and poor detail all point back to heating balance, vacuum performance, cooling rhythm, material readiness, or tooling condition. RBT MACHINERY supports that more stable approach with forming systems designed around controlled heating, sufficient vacuum response, and repeatable shaping. If you want to reduce scrap and improve shell consistency across your line, contact us to learn how our 24 inch Luggage Vacuum Forming Machine and wider forming solutions can support your luggage production plan.
Webbing and uneven wall thickness are among the most common problems because they are strongly affected by heat balance, draw ratio, and mold geometry. They also become very visible on large hard-shell luggage surfaces.
PC and ABS can absorb moisture before forming. If the sheet is not dried correctly, the absorbed moisture can vaporize during heating and show up as bubbles or blisters in the finished shell.
Warping often comes from uneven cooling and internal stress. A part may seem acceptable during demolding and then distort later as different areas shrink at different rates.
Start with sheet temperature, vacuum strength, venting, and mold cleanliness. Low heat, slow or weak vacuum, and blocked or insufficient vents are common reasons for poor detail replication.
