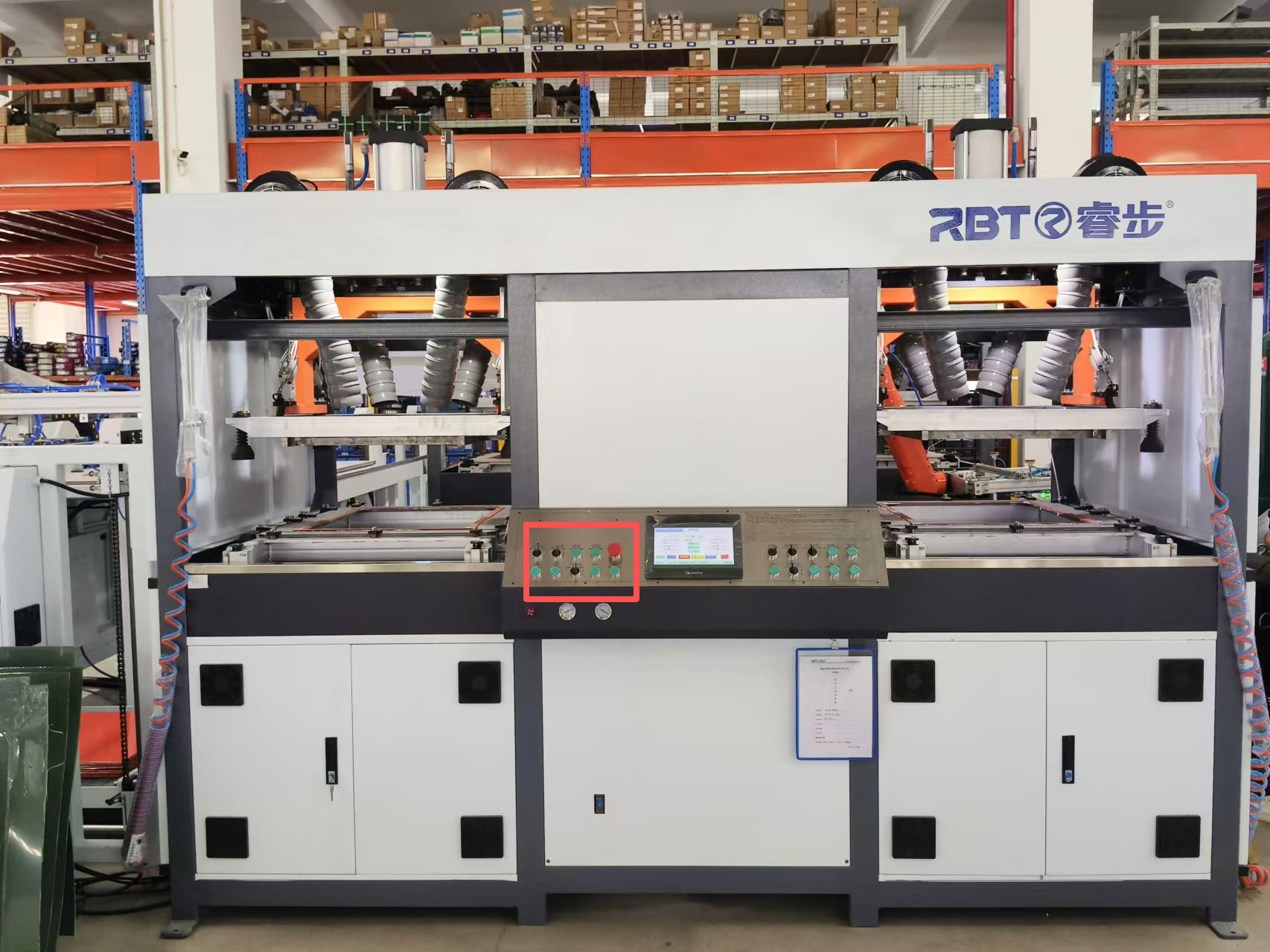

The 30-inch Suitcase Vacuum Thermoforming Machine is a fully automated solution designed for polycarbonate (PC) and ABS luggage shell production. Featuring a dual-station design, it allows simultaneous heating and forming, ensuring continuous production and higher efficiency.
This machine is widely used in hard-shell luggage manufacturing, offering precise forming, quick mold change, advanced cooling, and safe operation for premium suitcase production.
✅ Dual-Station Continuous Operation
While one station is heating, the other performs forming, material loading/unloading, ensuring seamless production cycles.
✅ Precise Vacuum Forming Process
Equipped with laser distance measurement, primary and secondary vacuum systems, and adjustable airflow for stable and accurate forming.
✅ Quick Mold Change System
Optimized design allows fast and safe mold replacement without complex disassembly.
✅ Efficient Cooling System

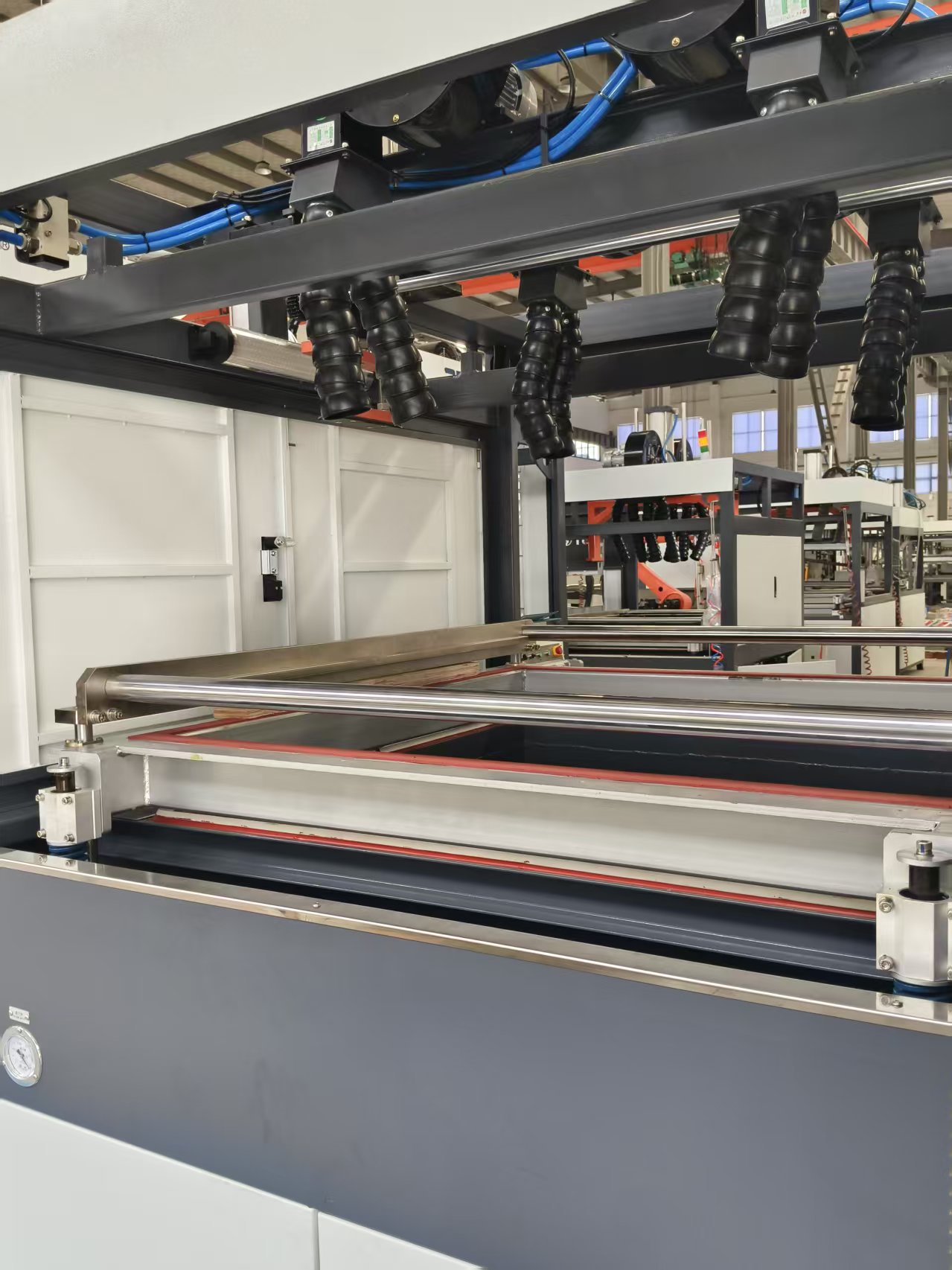

Four high-performance centrifugal fans with adjustable outlet angles accelerate cooling and improve production speed.
✅ Advanced Heating Control
Double-layer heating system (upper honeycomb far-infrared bricks + lower dense heating tubes)
Automatic temperature balance between two working stations
Left-right heating furnace movement for preheating molds
✅ User-Friendly & Safe
Supports manual and automatic modes, with infrared light curtain protection for safety. Touchscreen interface allows real-time parameter adjustments and recipe storage.
✅ Perfect for Polycarbonate Vacuum Forming
Specially designed for 32-inch polycarbonate luggage shells, ensuring precise forming and high-quality finishes.
Hard-shell suitcase manufacturing (20”-32”)
Polycarbonate and ABS luggage shells
Protective cases and other thermoformed plastic products
Higher Efficiency – Dual-station continuous forming saves time
Stable Quality – Laser measurement & precise vacuum control ensure accurate forming
Cost-Effective – Quick mold change & optimized cooling system reduce downtime
Safe & Easy Operation – Infrared safety protection + intuitive touch control
Versatile – Compatible with both ABS and polycarbonate luggage materials
Safety issues
Regarding the issue of usage safety that customers are concerned about, the emergency button on our machine is clearly located. It can be stopped in time.
Heating bricks: Chinese
Pneumatic components: Taiwan AirTAC
Temperature control module: Shanghai Aoyi
PLC: Xinje
Touch screen: Shenzhen Weinview
Switches: Omron Japan
Motors: Shenzhen Yankong
Electrical components: Schneider (France) / Zhengtai
Cooperation customers:
The 30-inch Suitcase Vacuum Thermoforming Machine is an indispensable equipment for modern luggage manufacturing lines. It combines precision thermoforming technology, high efficiency, and user-friendly operation, making it the ideal choice for polycarbonate and ABS hard-shell suitcase production.
Looking to upgrade your luggage production line? Contact us today for more details and pricing!
NO. | Item | Model | |||
RB-A8- 1(20 inch) | RB-A8-2(24 inch) | RB-A8-3 （28 inch） | RB-A8-4（30/32 inch） | ||
1 | Dimension | 2863× 1700× 2520mm | 3187× 1755× 2520mm | 3500× 1966× 2630 mm | 3600×2266× 2630mm |
2 | Weight | 2000KG | 2350KG | 2600KG | 2800KG |
3 | Power Voltage | 3-380V( 3 phase 5 lines） | 3-380V(3 phase 5 lines） | 3-380V(3 phase 5 lines） | 3-380V(3 phase 5 lines） |
4 | Frequency | 50HZ | 50HZ | 50HZ | 50HZ |
5 | Total Power | 38KW | 50KW | 59KW | 59KW |
6 | Heating Power |
| 48KW | 56KW | 56KW |
7 | Heating brick spec | 120* 120/ 500W | 120* 120/ 500W | 120* 120/ 500W | 120* 120/ 500W |
8 | Heating tube spec | ∅ 22*/1.5KW | ∅ 22*/1.5KW | ∅ 22*/1.5KW | ∅ 22*/1.5KW |
9 | Spec of upper electric furnace | (inner)680*980*110mm | (inner)815* 1005*110mm | (inner)950* 1130*110mm | (inner)1039* 1241*110mm |
10 | Upper electric furnace (heating brick arrangement) | 5*7 | 6*8 | 7*8 | 7*9 |
11 | Spec of bottom electric furnace (brick) | ( inner) 680*980*45mm | ( inner)815* 1005*45mm | ( inner)946* 1035*45mm | ( inner)1039* 1241*45mm |
12 | Bottom electric furnace (heating brick arrangement) | 5*6 | 6*7 | 7*8 | 7*9 |
13 | Bottom furnace (heating tube arrangement) | 8+4+2 (Vertical ) | 10+4+2 （ Vertical） | 14+4+2 （ Vertical ） | 16+4+2 （ Vertical ） |
14 | Vacuum capacity | 0.2m³ | 0.3m³ | 0.35m³ | 0.4m³ |
15 | Vacuum pressure | -0.07~0.09MPA | |||
16 | Max Plastic Sheet Spec( L*W) | 830*610mm | 960*747mm | 960*885mm | 1085*885mm |
17 | Maximum mold size(L*W*H) | 600*420* 190mm | 690*510* 190mm | 780*600* 190mm | 840*640* 190mm |
18 | Maximum frame size(L*W) | 680*500mm | 780*600mm | 880*700mm | 1035*830mm |
19 | Sheet Material and Thickness | ABS 、PC etc；1-4mm | |||
20 | ABS case max. output (pcs /H) | 110 | 105 | 90 | 80 |
21 | PC case max. output(pcs /H) | 85 | 80 | 70 | 60 |
22 | Air pressure | 0.65~0.75 | |||
23 | Air consumption | 550L/MIN | 650L/MIN | 800L/MIN | 900L/MIN |
24 | Power spec | 3-380V+N+ PE | 3-380V+N+ PE | 3-380V+N+ PE | 3-380V+N+ PE |
25 | Power line spec | 4- 16mm²*1- 10mm² | 4- 16mm²*1- 10mm² | 4-35mm²*1- 16mm² | |
Configuration
No. | Item | Origin/Brand | Remark |
1 | Heating brick | Chinese | |
2 | Pneumatic element | Taiwan AirTAC | |
3 | Temperature control module | Shanghai Aoyi | Modular voltage adjustment |
4 | PLC | Xinje | |
5 | Touch Screen | Shenzhen Weinview | |
6 | Travel Switch,Induction Switch | Japan Omron | |
7 | Driving Motor | Shenzhen Yankong | Precision Stepping motor |
8 | Electrical element | France Schneider/Zhejiang Zhengtai |
35KW
